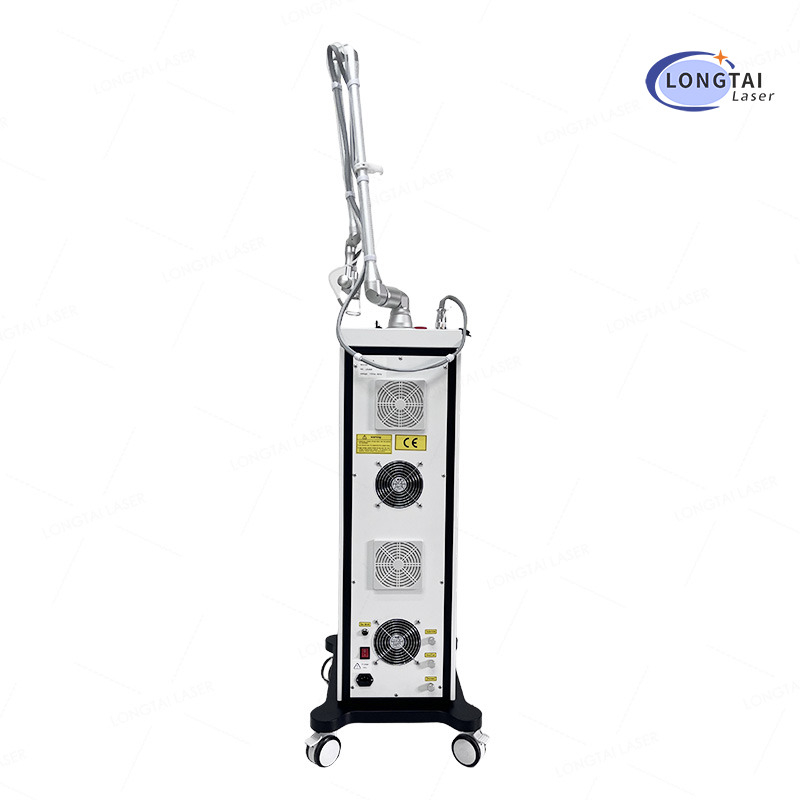

Translucent-Screen CO2 Fractional Laser Machine Skin Resurfacing

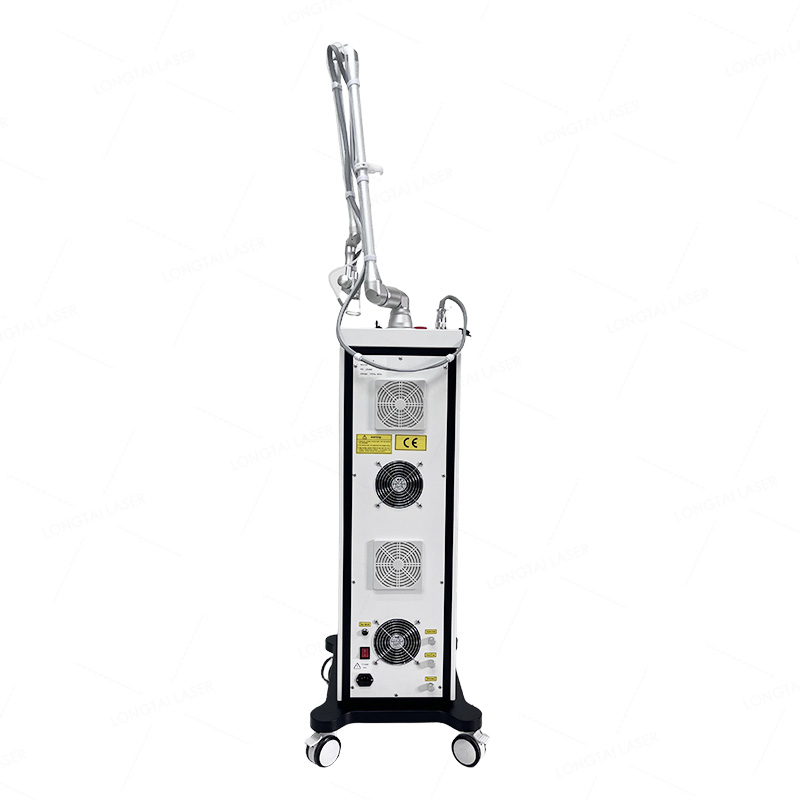

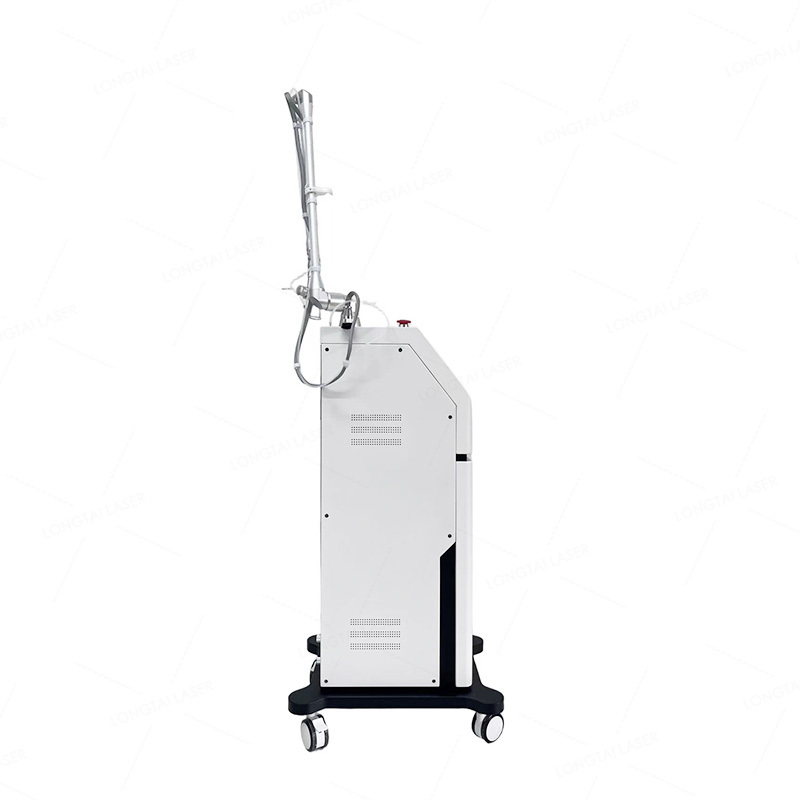

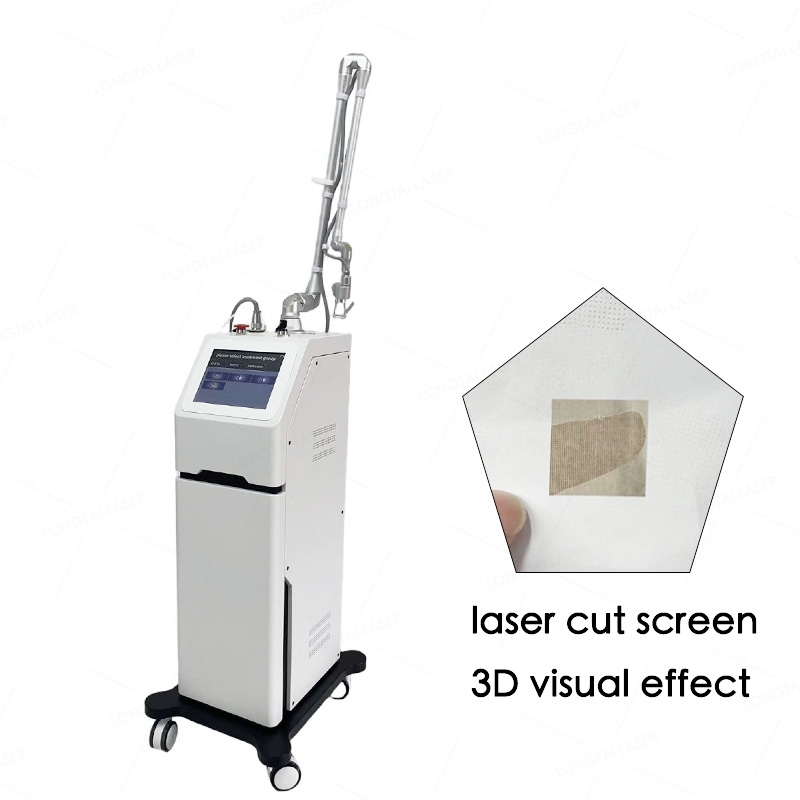

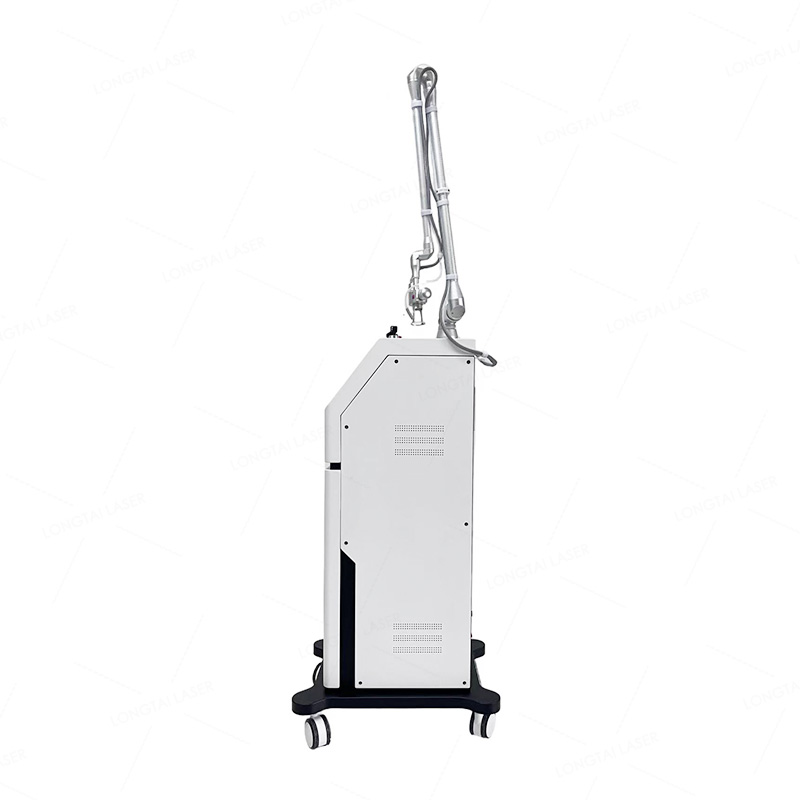

Longtai’s Translucent-Screen CO₂ Fractional Laser Machine is a medical-grade aesthetic device engineered exclusively for dermatology clinics, medical spas and plastic surgery centers. It delivers precise skin resurfacing and dermal repair using the industry gold-standard 10600nm wavelength, with pre-programmed treatment protocols that ensure consistent results across all practitioner skill levels. The vertical cart design with silent brakeable casters allows easy movement between treatment rooms, while the translucent laser cut screen adds a modern aesthetic to any clinical environment.

Core Technology & Technical Specifications

Advanced Laser System

This device features an RF-excited sealed CO₂ laser tube that delivers stable power output throughout its service life. The 10600nm wavelength is optimally absorbed by skin water molecules, enabling controlled ablation and thermal stimulation that triggers natural collagen remodeling. With selectable 30W/60W output power and up to 600W peak power in ultra-pulse mode, it minimizes thermal damage to surrounding tissue and accelerates patient recovery time.

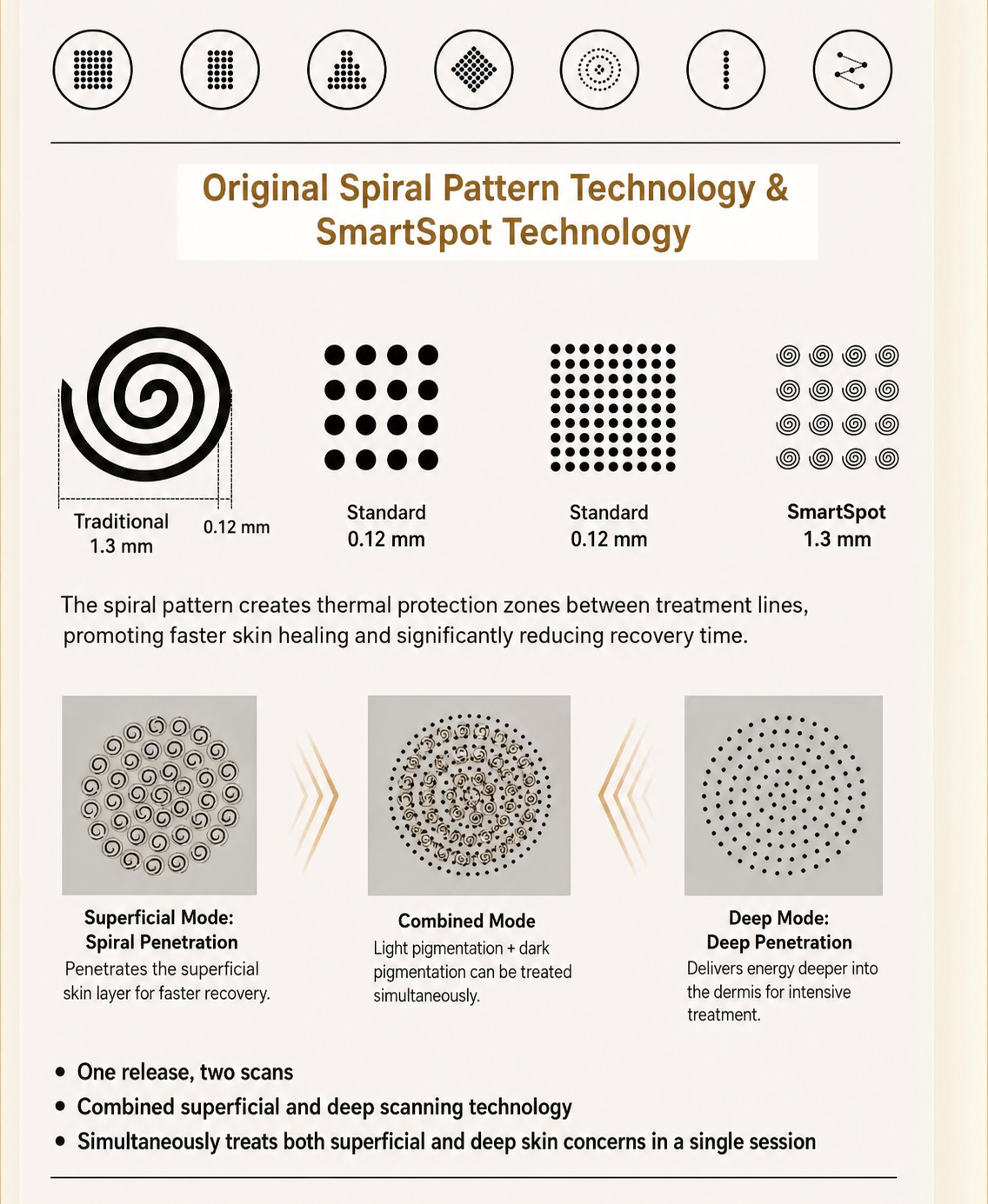

3D Dynamic Scanning & Delivery

The 7-articulated arm provides 360° unobstructed laser delivery, adapting seamlessly to facial, neck and body contours. The 3D dynamic scanning system creates matrix laser spots with fully adjustable parameters: spot density (1-100%), treatment depth (0.1-4mm) and pattern size (1-20mm). Pre-set modes for skin rejuvenation, scar treatment and fine line reduction eliminate manual parameter calculation, reducing staff training requirements and standardizing treatment outcomes.

Full Technical Specifications

Category	Parameter	Specification
Laser System	Laser Type	RF-excited Sealed CO₂ Laser Tube
	Wavelength	10600nm (10.6μm)
	Output Power	30W/60W Optional
	Peak Power	600W (Ultra-Pulse Mode)
	Operating Modes	Ultra-Pulse, Continuous, Fractional
Scanning System	Spot Diameter	0.1-2.4mm (Fractional Mode)
	Scan Patterns	Square, Round, Triangle, Custom
	Adjustable Parameters	Density 1-100%, Depth 0.1-4mm, Size 1-20mm
	Guide Light	650nm Red Semiconductor Laser (≤2mW)
Control & Safety	Control Interface	7/10.4" Industrial Touchscreen
	Operation Mode	Touch + Foot Switch
	Safety Features	Emergency Stop, Key Switch, Warning Labels
Mechanical	Dimensions	110×50×45cm
	Net Weight	40-50kg
	Mobility	Silent Brakeable Casters
	Cooling System	Built-in Closed-Loop Water + Air Cooling
	Smoke Filtration	Integrated Medical-Grade Smoke Filter

Clinical Applications & Treatment Benefits

Primary Treatment Indications

Skin resurfacing and texture improvement

Acne scar and surgical scar repair

Fine line and wrinkle reduction

Pore tightening

Superficial pigmentation correction

Stretch mark treatment

Key Advantages for Your Clinic

Multi-treatment capability maximizes revenue per device investment

Pre-set protocols reduce staff training time by 50%

Fully adjustable parameters enable personalized treatment plans

Built-in medical smoke filter maintains a safe clinical environment

Dual control system (touch + foot switch) enhances operational flexibility

Compliance & Quality Assurance

All Longtai CO₂ fractional laser machines are manufactured under ISO 13485 quality management system standards and hold CE (MDR) certification, the latest European medical device regulation. We provide complete regulatory documentation to assist with local medical device registration processes in your region. Each unit undergoes rigorous performance testing before shipment to ensure consistent operation.

After-Sales Support & Customization

We offer comprehensive after-sales services to minimize equipment downtime:

2-year warranty on the main unit

1-year warranty on the laser source

24/7 remote technical support

Optional on-site training and maintenance services

We also provide OEM/ODM customization options, including device appearance branding and software interface customization to align with your clinic’s brand identity.

FAQ

What is the difference between RF-excited and glass tube CO₂ lasers?

RF-excited tubes deliver more stable power output, have longer service lives and require less maintenance compared to traditional glass tube lasers.

What training is required to operate this machine?

Basic medical aesthetic training is sufficient, as the pre-set treatment modes simplify operation. We also provide optional on-site training for your staff.

How long does the laser source typically last?

Under normal operating conditions, the RF-excited CO₂ laser tube has a service life of approximately 10,000 hours.

Do you provide assistance with local regulatory registration?

Yes, we provide complete CE (MDR) and ISO 13485 documentation to support your local registration process.

What is the typical delivery time for this equipment?

Standard delivery takes 15-30 days after order confirmation, depending on your location and customization requirements.

Get Your Free Custom Quote

Contact our professional team today to receive a detailed product brochure and customized pricing based on your clinic’s specific needs. We will work with you to develop a solution that aligns with your treatment offerings and business goals.
